Multiple Forms: Unions are not supported
The current version of the Multiple Forms extension can only perform a JOIN operation, not a UNION operation (yet).
How a UNION works (not yet possible with GravityView)

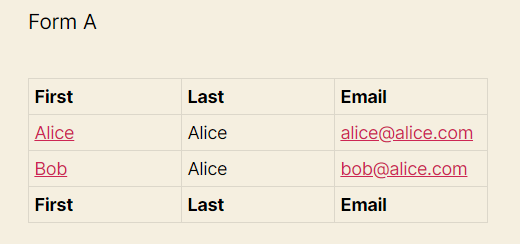

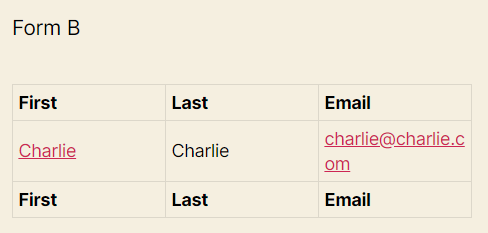

It can't combine the information of two forms like this...

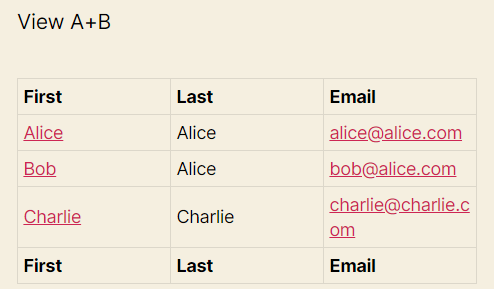

...into a View like this:

That's not possible!
How a JOIN works

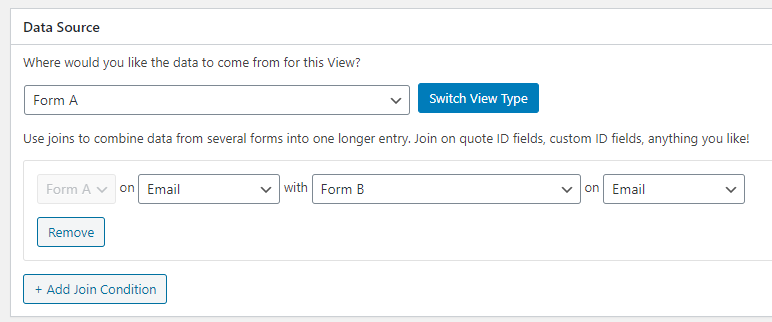

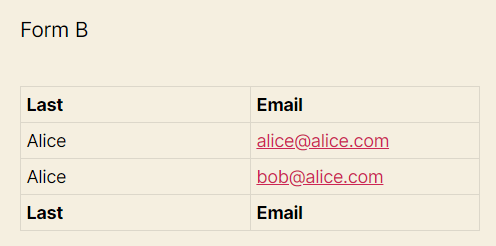

What the plugin allows instead is the following, known as a "JOIN":

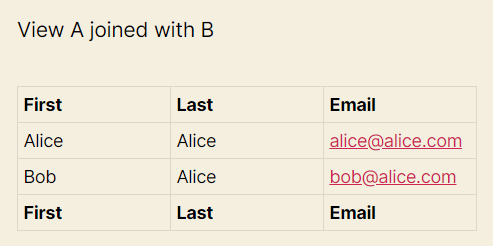

Joining these two forms by the email address and outputting a View like this:
