PDF export settings and style controls

GravityExport lets you customize the appearance of your PDF exports using built-in settings—no code required. There are two places where PDF settings are configured: per-feed settings (specific to each export feed) and global settings (applied across all exports).

Per-feed PDF export settings

Each GravityExport feed has its own PDF Export Settings section. To access these settings, go to Forms > Settings > GravityExport, then open the feed you want to configure.

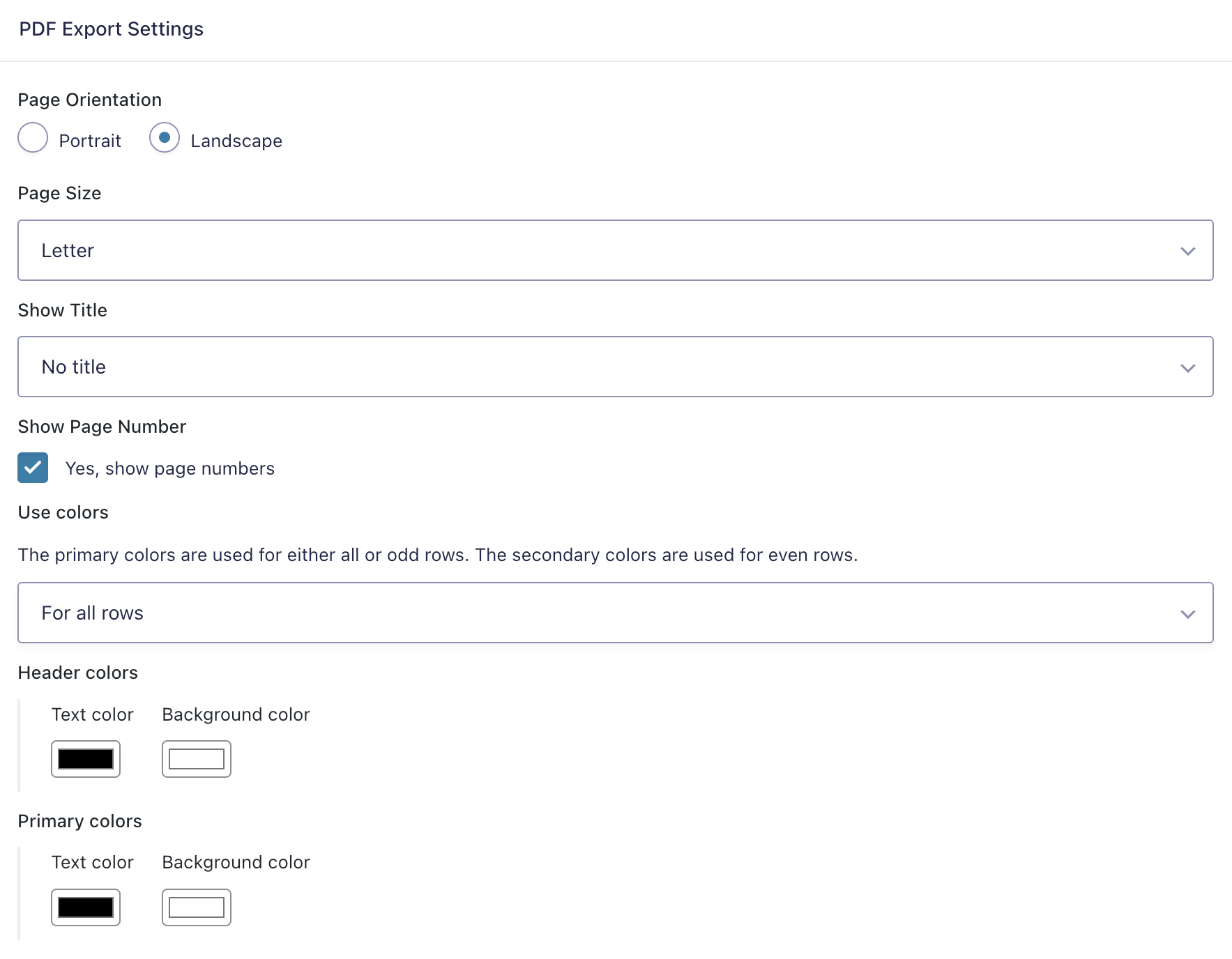

GravityExport PDF Export Settings panel showing options for page orientation, page size, show title, show page number, use colors, header colors, and primary colors

Page orientation

Choose between Portrait (vertical) and Landscape (horizontal) layout for your PDF. Landscape is useful for forms with many fields, as it provides more horizontal space for columns.

Page size

Select a standard page size from the dropdown (e.g., Letter, A4). This controls the dimensions of each page in the exported PDF.

Show title

Choose whether to display a title at the top of your PDF. Select No title to omit it, or choose a title option to include one.

Show page number

Check Yes, show page numbers to display page numbers on your PDF. This is helpful for multi-page exports with many entries.

Use colors

Control how row colors are applied in your PDF table:

For all rows — applies the primary colors to every row
For odd/even rows — applies the primary colors to odd rows and secondary colors to even rows, creating an alternating striped effect for easier reading

Header colors

Set the text color and background color for the header row of your PDF table. This helps visually distinguish column headers from entry data.

Primary colors

Set the text color and background color for data rows (or odd rows, if using alternating colors).

Secondary colors

When using alternating row colors, set the text color and background color for even rows.

Global PDF settings

Global settings apply to all GravityExport PDF exports across your site. To access them, go to GravityKit > Settings > GravityExport and look for the PDF settings section.

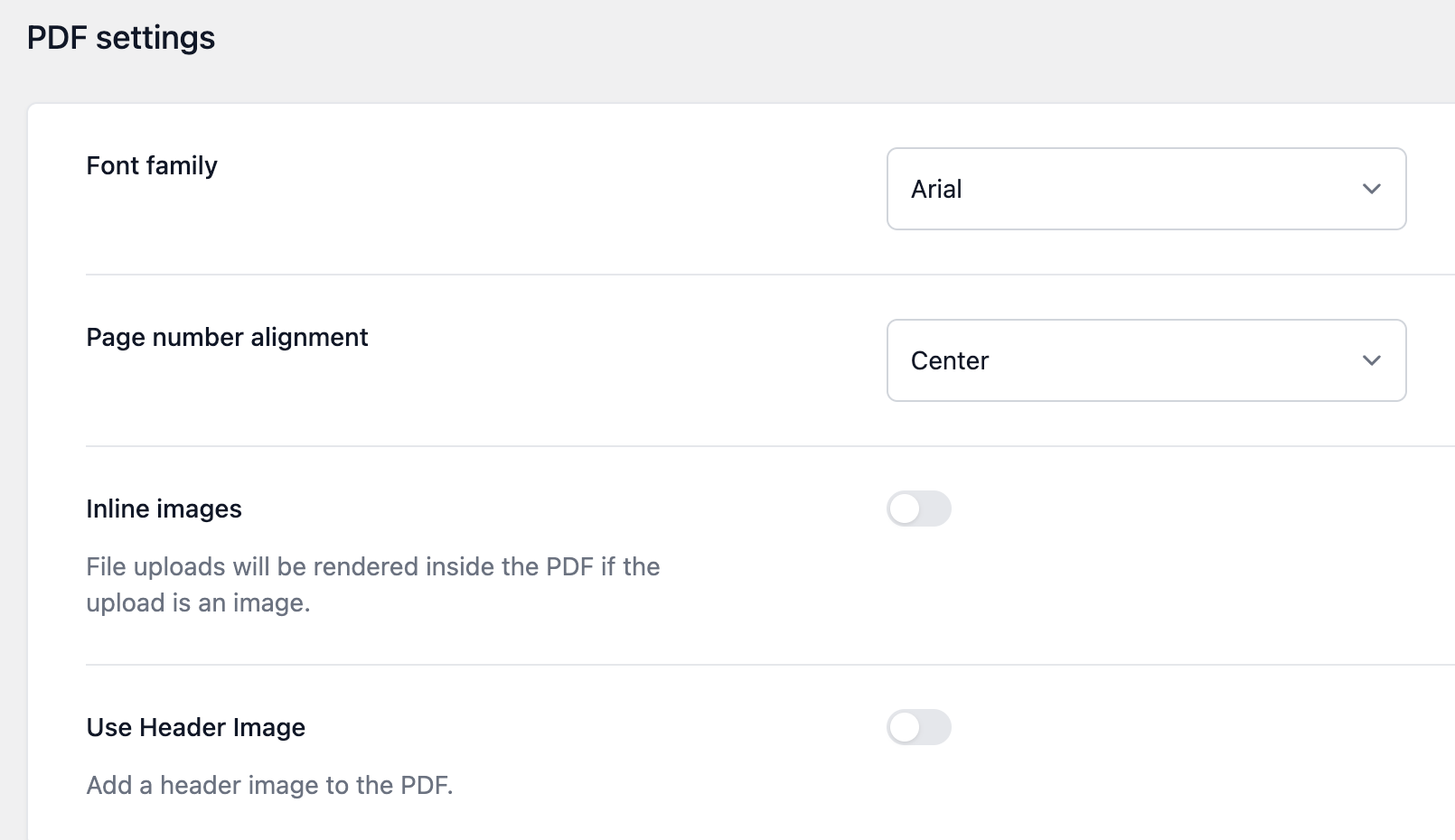

GravityExport global PDF settings panel showing options for font family, page number alignment, inline images, and use header image

Font family

Choose a font for your PDF exports from the dropdown (e.g., Arial). This font applies to all text in the exported PDF.

Page number alignment

If page numbers are enabled in your feed settings, this controls their position on the page. Options include Left, Center, and Right.

Inline images

Toggle this on to render uploaded image files directly inside the PDF. When enabled, file upload fields that contain images will display the actual image in the PDF instead of a file URL.

Use header image

Toggle this on to add a logo or banner image to the top of your PDF exports. This is useful for branding your exports with your company logo.

Note: For more advanced styling beyond these built-in options, you can apply custom CSS to your PDF exports. See Styling PDF file exports using CSS for details.
